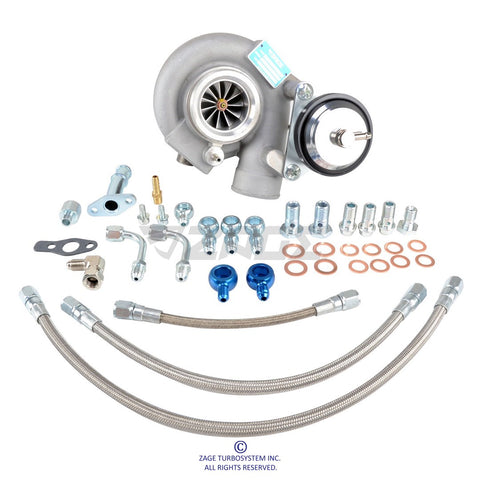

9000 AERO

Flange: T25/28

Actuator: 0.2~2 BAR

Billet actuator is an optional part for this turbo.

APPLICATIONS:

1993- 1998 Saab 9000 with B234R Engine

Replacement for: Stock TD04HL Turbo P/N 49189-01600, Garrett TB2531 etc.

*Stock MHI TD04 Turbo MAX 230HP

● Both Journal Bearing and Bolt-on Ball Bearing are Available to select from.,and please contact ZAGE for more information.



● Scrollable Table for Turbo Configurations:

Max HP Turbine Wheel Nozzle Area AR Compressor Wheel CFM Part Number
380+ TD04HL (45.6/52mm) 7cm² 49 15G (43/56 mm) 450 1ZSA1B-534307-01
400+ TD04HL (45.6/52mm) 7cm² 49 19T (46/58 mm) 450 1ZSA1B-534607-01



● Carefully assembled and VSR balanced by balancing machine from Turbo Technics in our fully equipped Taiwan facility.

● ZAGE can ship worldwide with no minimum order quantity.

● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
