Rebuild Kit for K33 Turbo
| Part Number | Type |
|---|---|
| 1GRBK-ZKK7-0100 | Small bearing |
| 1GRBK-ZKK7-0200 | Large bearing |

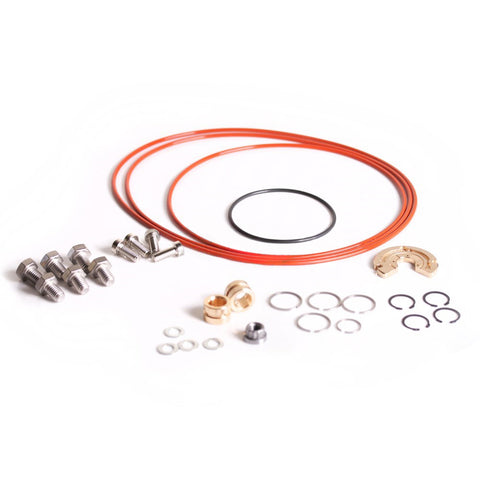

● Scrollable Table for Kit Contents (Small bearing):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4BOT-M0812512A-0300 | Bolt(M8*1.25p*12mm) | 8 |
| 4BOT-M0812525A-0100 | Bolt(M8*1.25p*25mm) | 4 |
| 4CSR-I-019-0100 | Snap Ring(20.4xT1) | 4 |
| 4NUT-M08100R-0100 | Shaft Nut(M8x1.0) | 1 |
| 4NUT-M10100N-0100 | Shaft Nut(M10xP1.0) | 1 |
| 4ORN-09431-0100 | O-Ring (Seal plate/94.4mm) | 1 |
| 4ORN-19626-0100 | O-Ring (Comp Cover/196.52mm) | 1 |
| 4ORN-21030-0100 | O-Ring (Comp Cover/210mm) | 1 |
| 4RKP-JB-KK-0600 | Journal Bearing | 2 |
| 4RKP-PR-193-0201 | Piston Ring (Turb)Φ19.3 | 2 |
| 4RKP-PR-193-0301 | Piston Ring (Turb)Φ19.304 | 2 |
| 4RKP-TB-KK-0400 | Thrust Bearing | 1 |
| 4WAS-M08F-0200 | Washer M8(D8xD16x1.5T) | 4 |

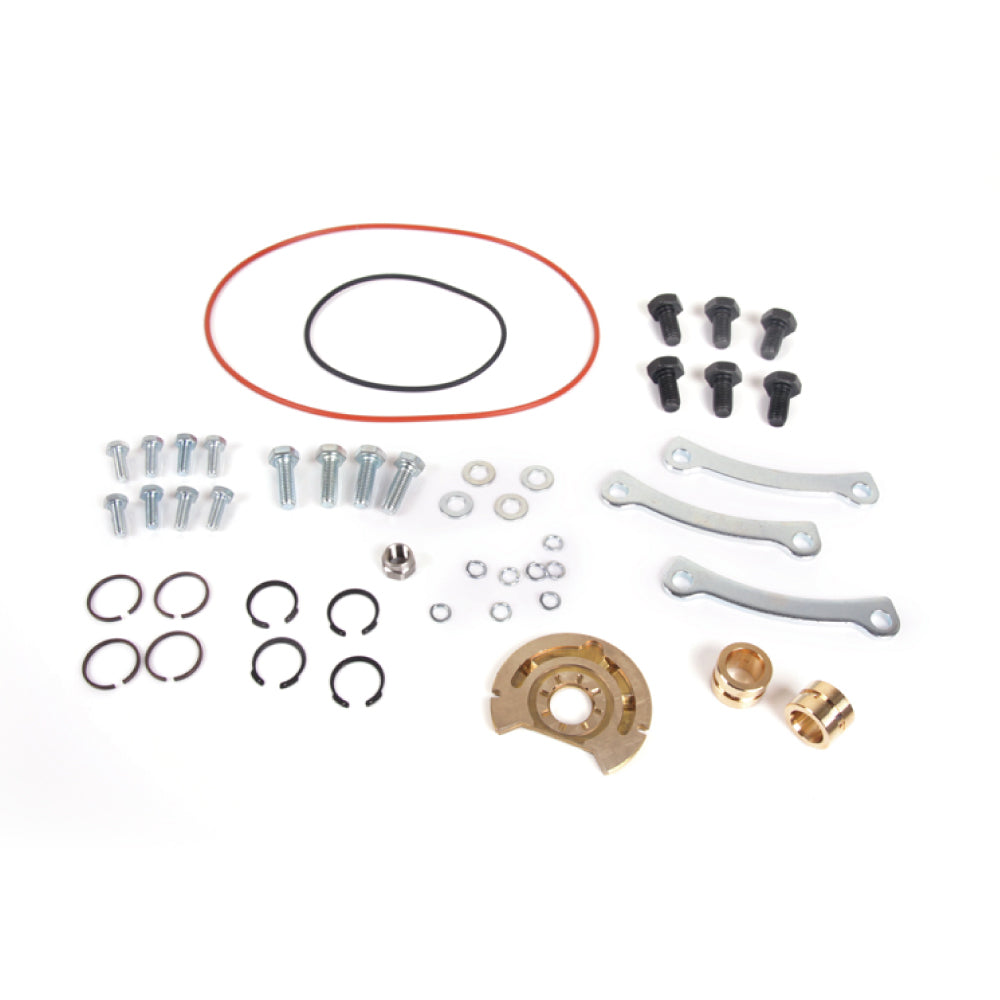

● Scrollable Table for Kit Contents (Large bearing):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4BOT-M0610016A-0100 | Bolt | 8 |
| 4BOT-M0812525A-0100 | Bolt(M8*1.25p*25mm) | 4 |
| 4BOT-M1015020A-0100 | Bolt (Turb) | 6 |
| 4CSR-I-022-0200 | Snap Ring(J-Brg) | 4 |
| 4NUT-M10100N-0100 | Shaft Nut(M10xP1.0) | 1 |
| 4ORN-09431-0100 | O-Ring (Seal plate/94.4mm) | 1 |
| 4ORN-18431-0100 | O-Ring (Comp Cover/184.3mm) | 1 |
| 4RKP-CP-KK-0100 | Clamp Plate | 3 |
| 4RKP-JB-KK-0700 | Journal Bearing | 2 |
| 4RKP-PR-224-0100 | Piston Ring (Turb)Φ22.45 | 4 |
| 4RKP-TB-KK-0400 | Thrust Bearing | 1 |
| 4WAS-M06S-0100 | Spring Washer | 8 |
| 4WAS-M08F-0200 | Washer M8(D8xD16x1.5T) | 4 |
● ZAGE can ship worldwide with no minimum order quantity.
● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
